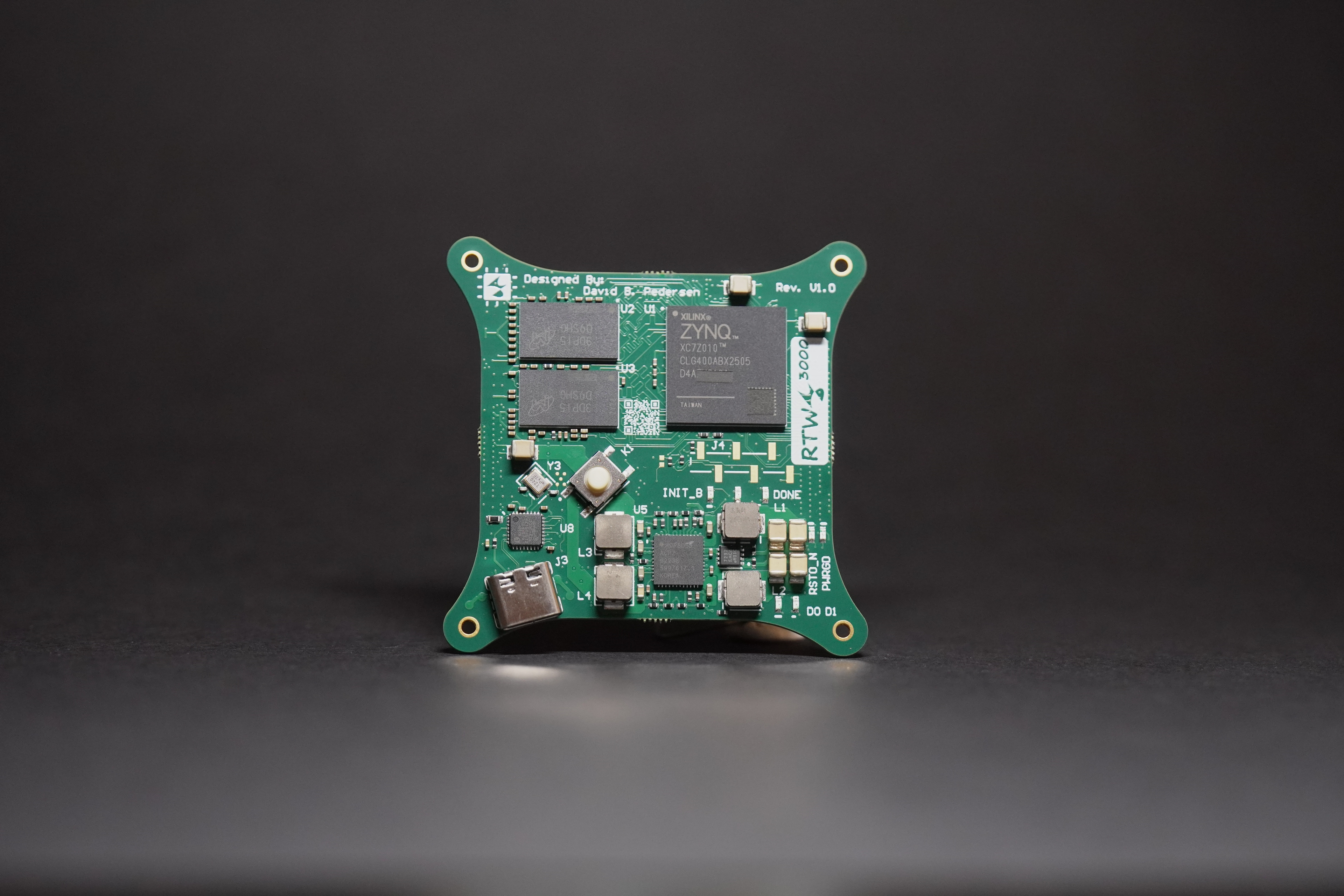

The RTW3000 is the core platform, built around the Xilinx Zynq-7000 Z-7010 SoC. It includes high-speed DDR3L memory, onboard storage, and a variety of interfaces. Designed to work standalone or with extension boards for advanced capabilities.
RTW3000
Zynq-7000 (Z-7010) development board with DDR3L memory, QSPI/eMMC, SD, USB, and dual 100-pin expansion connectors.
Zynq-7000 Base Platform
A powerful development board with expansion for LED, BLDC, and ADC modules.
Processor
Xilinx Zynq-7000 Z-7010 SoC
Memory
8Gbit DDR3L
Storage
256Mbit QSPI flash + eMMC
Interfaces
USB 2.0, SD card slot
Expansion
2 × 100-pin connectors
Power
Quad power PSU
Schematics & Documentation
To receive detailed schematics, BOMs, and full documentation for this product, please reach out and we’ll provide access.
- Block diagram & interfaces
- Reference design files
- Getting-started guide
